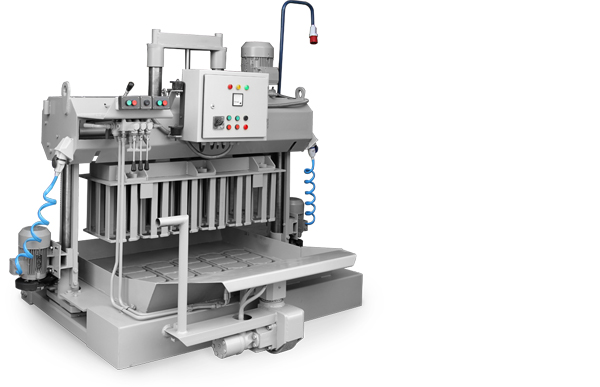

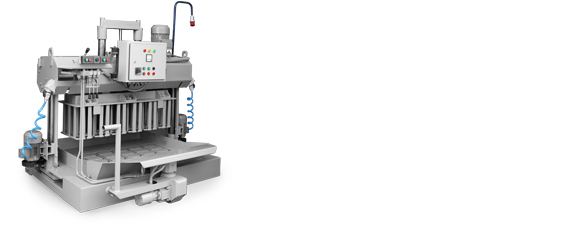

TB.300 EGG-LAYING BLOCK MAKING MACHINE STRIPS BLOCKS ON CONCRETE FLOOR
Possibly the best compromise between a manual plant involving little investment and the versatility and quality of bigger and more powerful machines: it performs high production with minimum running cost.
The ideal machine to start a medium plant, TB.300 is very easy to operate and needs minimum service. Mechanical parts and hydraulic elements exceeding necessities guarantee long life and extreme reliability
Weight & Dimension: 1450 kg, 1.60 x 2.25 x 1.75 m
Power: 220-380V; 3 Phases
Motors: 4 motors tot 10 kW
Semiautomatic machine, manual loading
Double side vibration and simultaneous hydraulic compression from top
First quality hydraulic system with adjustable pressure
3 Control levers for: 1. Compression 2. Stripping 3. Steering
3 Phases Control Panel to operate & protect the components.

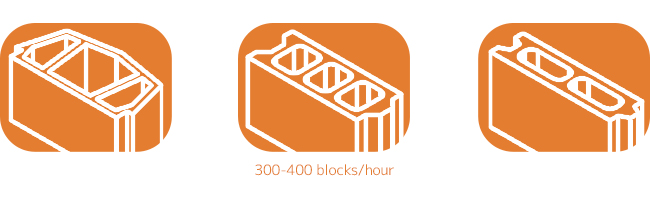

Production Rate: 300-400 blocks/h
