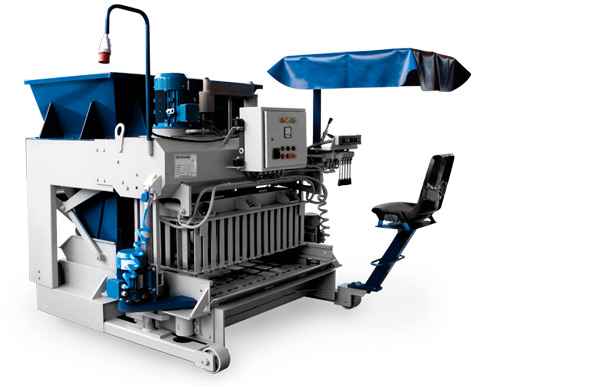

TB.800 EGG-LAYING BLOCK MAKING MACHINE STRIPS BLOCKS ON CONCRETE FLOOR
A machine featuring high production efficiency, distinctively easy and effortless to operate.
The excellent quality of compression together with a fast production cycle enables a smooth, evenly crafted and considerable output of cement blocks, TB.800 is very strongly built and rugged; its mechanical parts and hydraulic elements exceeding necessities guarantee long life and extreme reliability. Quality production, minimum service and maintenance needs together with rugged; strong built make it the safe choice for the most demanding producers.
SPECIFICATIONS
Weight & Dimension: 2570 kg, 2.25x 2.25 x 1.75 m
Power: 220-380V; 3 Phases
Motors: 3 motors tot 8 kW
Semiautomatic machine equipped with loading bucket
Double horizontal side vibration and simultaneous hydraulic compression from top
5 Control levers for: 1.Mould Loading 2. Compression 3. Stripping 4. Steering 5.Turning
A 650L Mixing bucket with automatic opening and closure
Special built-in torsion bar for an always parallel stripping
3 Phases Control Panel to operate & protect the components.
Changeable mould

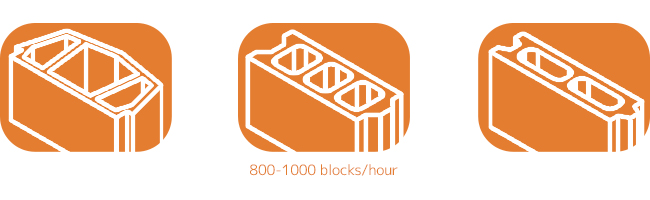

Production Rate: 800-1000 blocks/h
