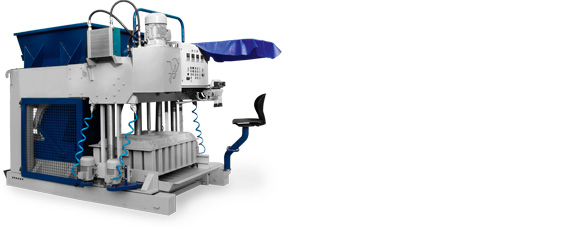

TB.1200 EGG-LAYING BLOCK MAKING MACHINE STRIPS BLOCKS ON CONCRETE FLOOR
A machine featuring high production efficiency, distinctively easy and effortless to operate.
The excellent quality of compression together with a fast production cycle enables a smooth, evenly crafted and considerable output of cement blocks, TB.1200 is very strongly built and rugged; its mechanical parts and hydraulic elements exceeding necessities guarantee long life and extreme reliability. Quality production, minimum service and maintenance needs together with rugged; strong built make it the safe choice for the most demanding producers
SPECIFICATIONS
Weight & Dimension: 4300 kg, 2.20 x 3.30 x 2.30 m
Power: 220-380V; 3 Phases , 32 A
Hydraulic System with seven Hand Levers: Feeding & Loading the blocks /
Pressing the blocks / Unloading the blocks / Moving the Machine
Back & forth / Turning the Machine / Opening & closing the Silo lid / Fifth
Wheel lever
Feeding Silo/Container: 1,100L Silo for the depot of the material equipped
With a hydraulic cylinder for the opening & closing.
Vibrators: Four 300Kgf Vibrators at both sides of the Machine driven by four
Electric motors tot.8 kW to press the material into the moulds.
Pressing: One hydraulic cylinder to press the material, simultaneously with the
100L hydraulic oil tank with a hydraulic pump & a 7.5 kW electric motor.
Three Hydro Motors (tot.1, 500CC) enabling the moving & turning of the
3 Phases Control Panel to operate & protect the components.
Equipped with a 130 L oil cooling radiator

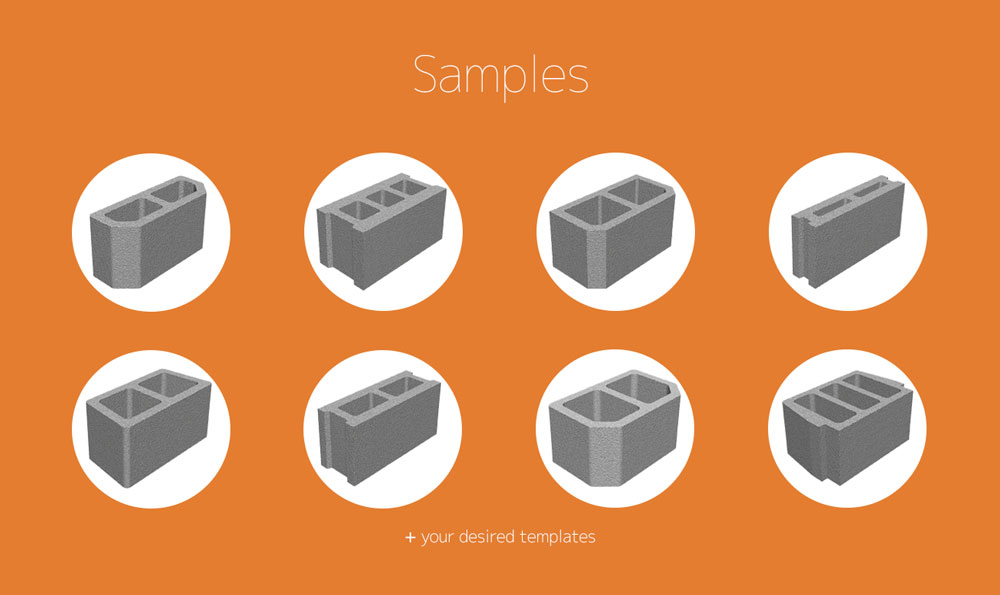

Changeable mould

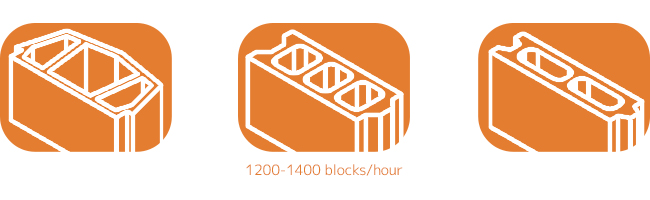

Production Rate: 1200-1400 blocks/h
