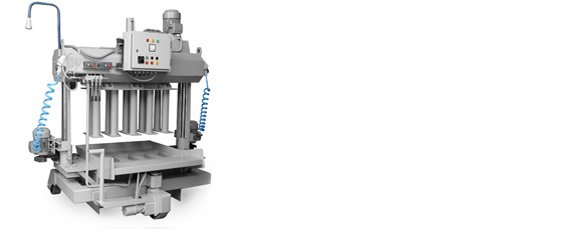

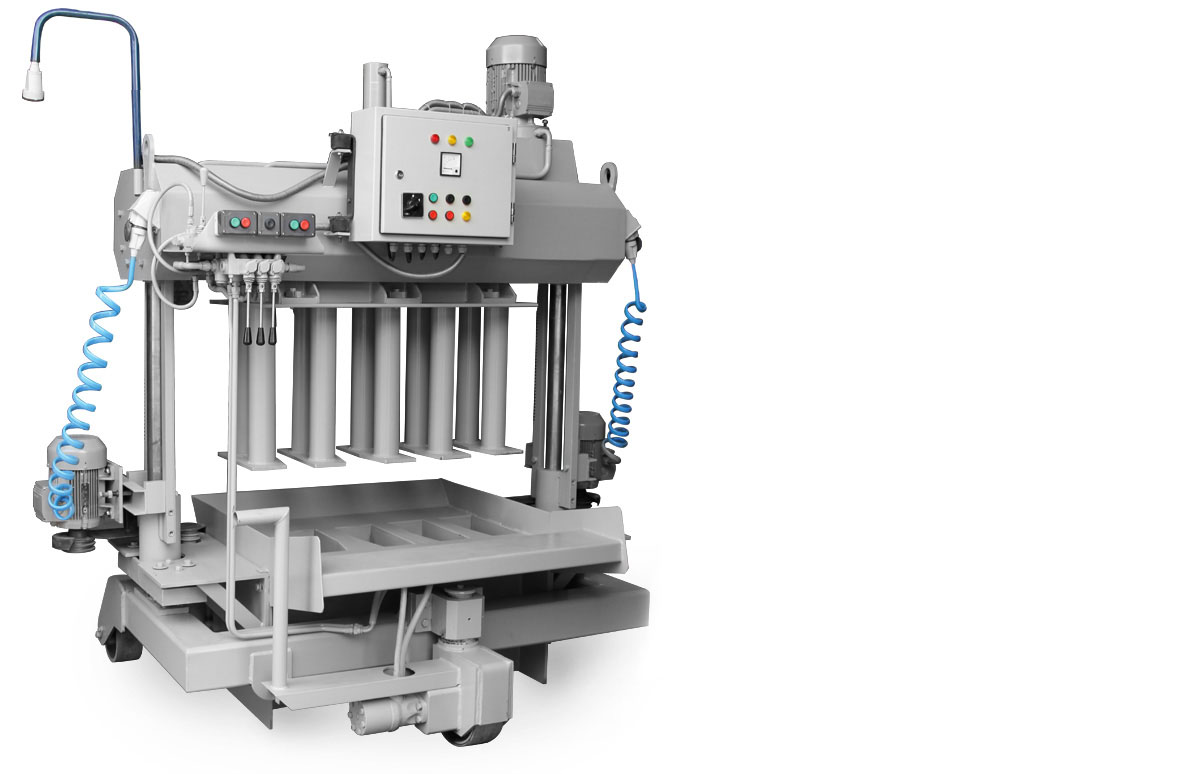

TB.150 EGG-LAYING CUBSTONE MAKING MACHINE STRIPS CURNS ON CONCRETE FLOOR
Possibly the best compromise between a manual plant involving little investment and the versatility and quality of bigger and more powerful machines: it performs high production with minimum running cost. The ideal machine to start a medium plant, TB.150 is very easy to operate and needs minimum service. Mechanical parts and hydraulic elements exceeding necessities guarantee long life and extreme reliability.
SPECIFICATIONS
Weight & Dimension: 1650 kg, 2.30 x 2.35 x 2.30 m
Power: 220-380V; 3 Phases
Motors: 4 motors tot 10 kW
Semiautomatic, Manual Loading, Double Side Vibration, Simultaneous Hydraulic Compression from top
First quality hydraulic system with adjustable pressure to control levers for: 1. Compression 2. Stripping 3. Steering
A 400cc hydro motor to control the machine’s movement
Special torsion built-in bar to ensure constantly parallel stripping
3 Phases Control Panel to operate & protect the components.
Changeable mould
Production Rate: 100-150 curbs/h
