TB.450

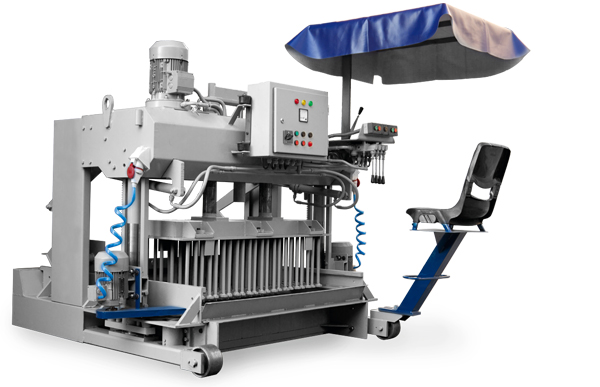

TB.450 EGG-LAYING BLOCK MAKING MACHINE STRIPS BLOCKS ON CONCRETE FLOOR

A machine featuring high production efficiency, distinctively easy and effortless to operate.

The excellent quality of compression together with a fast production cycle enables a smooth, evenly crafted and considerable output of cement blocks.

SPECIFICATIONS

Weight & Dimension: 1950 kg, 2.25x 2.25 x 1.75 m

Power: 220-380V; 3 Phases

Motors: 3 motors tot 10 kW

Semiautomatic machine equipped with a bucket to feed the mould and moving on 4 ball bearing with plastic blade that clean the mould while it moves

Double horizontal side vibration and simultaneous hydraulic compression from top

4 Control levers for: 1.Mould Loading 2. Compression 3. Stripping 4. Steering

A 400cc hydro motor to control machine’s movement

3 Phases Control Panel to operate & protect the components.

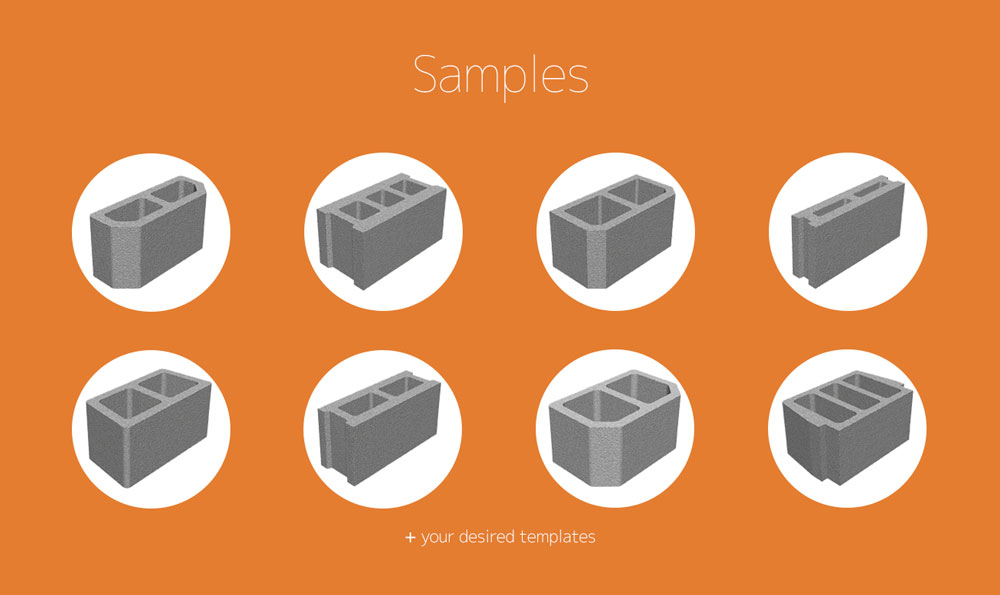

Changeable mould

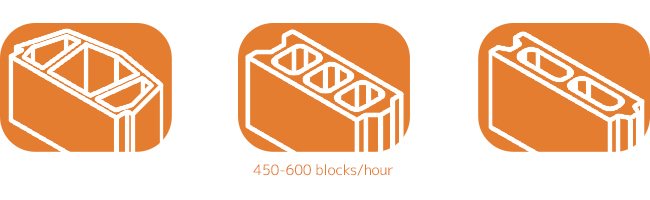

Production Rate: 450-600 blocks/h
