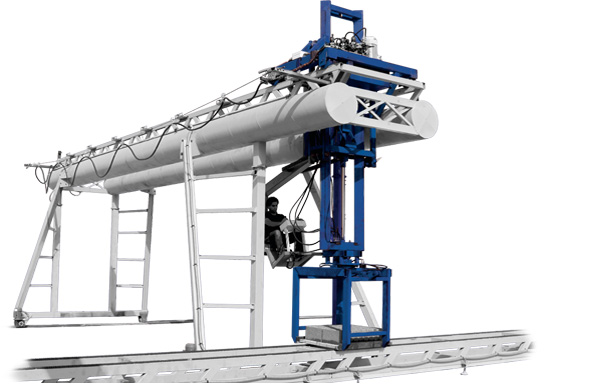

TB.M3156 GATE PALLET COLLECTOR ROBOT
SPECIFICATIONS
30 meters long chain belt with two 8kW electric gearboxes to move the pallets beneath the moulds.
A gate bridge structure with 30m lengthwise & 11m widthwise movement with following specifications:
Four cast-iron wheels driven by two electric gearboxes (Tot. 3kW) to move the gate lengthwise.
A rotating robot with 11m widthwise movement & 1.50 meters course driven by an hydraulic cylinder & a 500cc hydraulic pump which picks pallets from the chain belt & stacks them in four levels.
It can detach cement blocks from wood pallets.
It can load the packed products for shipment.
100L oil tank with a 5kW electric motor.
Hydraulic solenoid valve to automatically control the widthwise movement of the robot.
Hydraulic valve with two levers: One lever to move the robot up and down & the other to load and unload the robot.
Manual control panel
The robot can be designed & made for indoor & outdoor areas with bigger dimensions.
